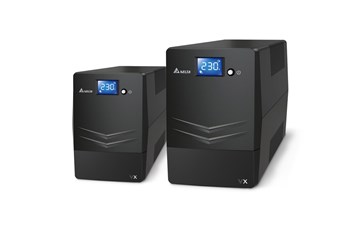

VX 600/1000/1500 VA

Reliable power protection for small business and home office applications

The Agilon VX line-interactive UPS designed with microprocessor control offers reliable and cost-effective power protection for PCs, monitor, POS, and other sensitive electronics used in home offices and small businesses. The integrated Automatic Voltage Regulation (AVR) ensures all electronics are receiving stable power while providing higher availability. The Agilon VX series' LCD display, auto-shutdown software and other superior features make these units perfect for your data protection.

English Polish
Request a Quote Subscribe Newsletter

Product Introduction

Features & Benefits


  • The integrated AVR (Automatic Voltage Regulation) stabilizes the output voltage for better power quality
  • Excellent microprocessor control enables accurate detection of power frequency for higher reliability
  • Wide input voltage range allows the UPS to work in harsh electrical environments and reduces battery discharging time
  • Batteries are automatically recharged even when the UPS is in off mode and the UPS can start without mains (Cold-Start)
  • UPS is able to restart automatically while utility power is recovering
  • Surge protection defends your critical load against damage


  • Supplied with IEC output power cable for convenient connection to your load
  • Several standard IEC 320 output sockets simplify the connectivity to computer and IT peripherals
  • Compact size saves more space for critical equipment


  • Standard USB communication port enhances monitoring and manageability
  • Touch screen LCD for a clear display of UPS information
  • Advanced UPS management software provides remote shutdown and control

UPS VX Series applications

  1. Model
  2. VX-600VA / VX-1000VA / VX-1500VA

  3. Power Rating
  4. VX-600VA: 600 VA / 360 W
    VX-1000VA: 1000 VA / 600 W
    VX-1500VA: 1500 VA / 900 W

  5. Input
  6. Nominal Voltage: 230 Vac
  7. Voltage Range: 170~280 Vac
  8. Frequency Range: 50/60 Hz (Auto sensing)

  9. Output
  10. Voltage: 230 Vac ± 10% (Battery mode)
  11. Frequency Range: 50/60 Hz ± 1 Hz
  12. Waveform (Batt. Mode): Simulated Sinewave

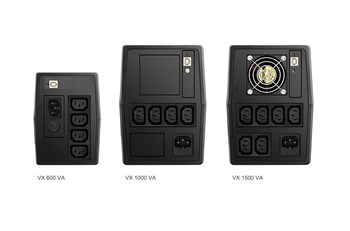

  13. Receptacle
    VX-600VA: IEC 320 C13 x 4
    VX-1000VA: IEC 320 C13 x 4
    VX-1500VA: IEC 320 C13 x 6

  14. Battery
  15. Battery Type & Number
    VX-600VA: 12V/7AH x 1
    VX-1000VA: 12V/7AH x 2
    VX-1500VA: 12V/9AH x 2
  16. Typical Recharge Time: 6~8 hours to 90%
  17. Cold Start: Yes

  18. Indicator
  19. LCD: Input voltage, output voltage, battery capacity, load level and UPS status

  20. Interface
    Standard: 1 USB port

  21. Environment
  22. Operating Temperature: 0~40ºC
  23. Altitude: 0-1000 m
  24. Relative Humidity: 0~90% RH (Non-condensing)
  25. Noise Level
    VX-600VA: < 40 dB
    VX-1000VA: < 40 dB
    VX-1500VA: < 45 dB

  26. Conformance
  27. Safety & EMC: CE

  28. Physical
  29. VX-600VA
    Dimensions (W x D x H): 101 x 300 x 142 mm
    Net Weight: 4.4 kg
  30. VX-1000VA
    Dimensions (W x D x H): 130 x 320 x 182 mm
    Net Weight: 8.2 kg
  31. VX-1500VA
    Dimensions (W x D x H): 130 x 320 x 182 mm
    Net Weight: 10.4 kg

  32. All specifications are subject to change without prior notice.

Management Software Download
ViewPower is an advanced UPS management software for Delta’s VX series UPS. It allows remote monitor and manage from one to multiple UPSs in a networked environment, either LAN or INTERNET. It can not only prevent data loss from power outage and safely shutdown systems, but also store programming data and scheduled shutdown UPSs.

Download the software according to your requested operation system in your computer system from the following link:
