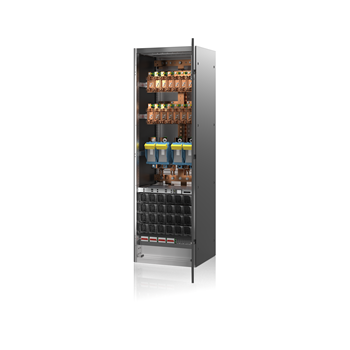

CabD is Delta’s robust indoor cabinet developed for expandable telecom power systems. Maximum current carrying capacity of single cabinet bus bars is 1500 A. Total load current in parallel configurations may be from 1500 A to over 6000 A when distributing rectifiers, battery and load connections evenly.

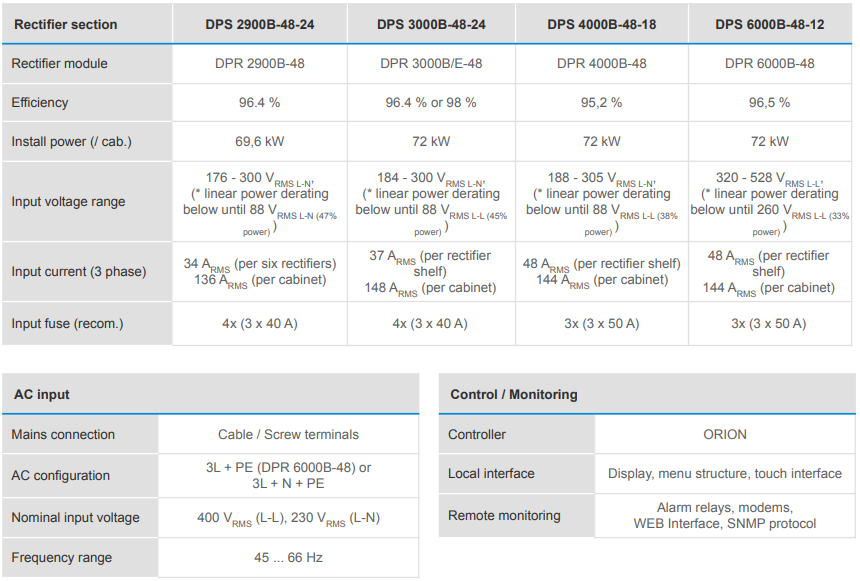

A complete system includes high efficiency rectifiers, AC and DC connections, battery connection and the advanced ORION controller. Typical setup for CabD 1500 is a combined power concept. The rectifiers, battery connection and load distributions are possible to configure in a single cabinet. Optionally modularity allows building rectifiers and dc-distribution in separate cabinets.

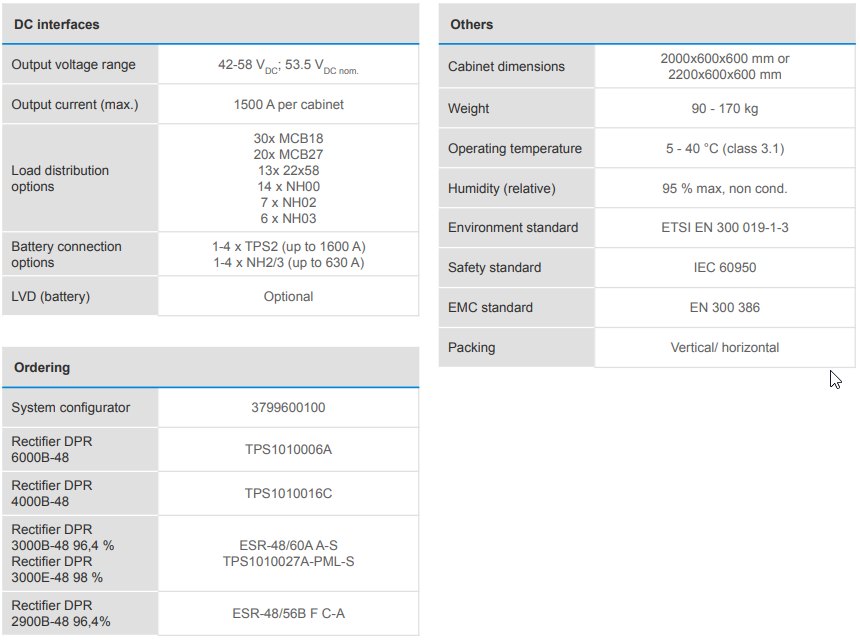

The multi cabinet CabD 1500 power system is easy to define with a table-based technical configuration file. Breaker ratings, layout among other features can be custom configured according to customer requirement. Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.
