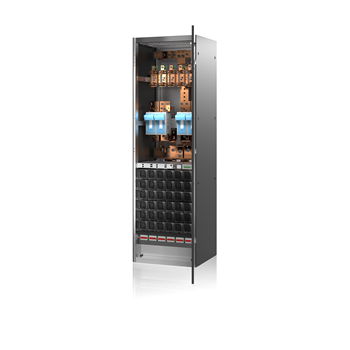

CabD is Delta’s robust indoor cabinet developed for expandable telecom power systems. Maximum current carrying capacity of single cabinet bus bars is 3000 A. Total load current in parallel configurations may be from 3000 A to over 10000 A when distributing rectifiers, battery and load connections evenly.
A complete system includes high efficiency rectifiers, AC and DC connections, battery connection and the advanced ORION controller. Typical setup for CabD 3000 is a bulk power concept. The rectifiers, battery connection and load distributions are possible to configure in a separate cabinets. For a compact solution, combination cabinet with rectifiers and dc connections is also possible.
The multi cabinet CabD 3000 power system is easy to define with a table-based technical configuration file. Breaker ratings, layout amonf other features can be custom configured according to customer requirement.
Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.
