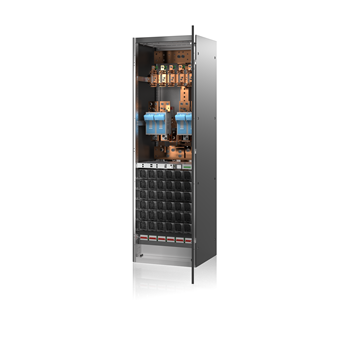

CabD is Delta’s robust indoor cabinet developed for expandable telecom power systems. Maximum current carrying capacity of single cabinet bus bars is >3000 A. Total load current in parallel configurations may be from 3000 A up to 15000 A when distributing rectifiers, battery and load connections evenly.

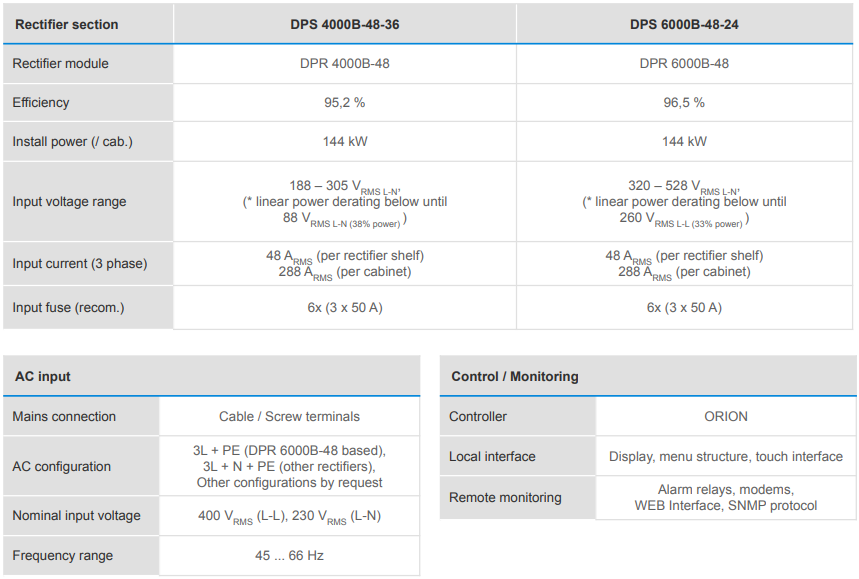

A complete system includes high efficiency rectifiers, AC and DC connections, battery connection and the advanced ORION controller. Typical setup for CabD 3000+ is a bulk power concept. The rectifiers, battery connection and load distributions are possible to configure in a separate cabinets. For a compact solution, combination cabinet with rectifiers and dc connections is also possible.

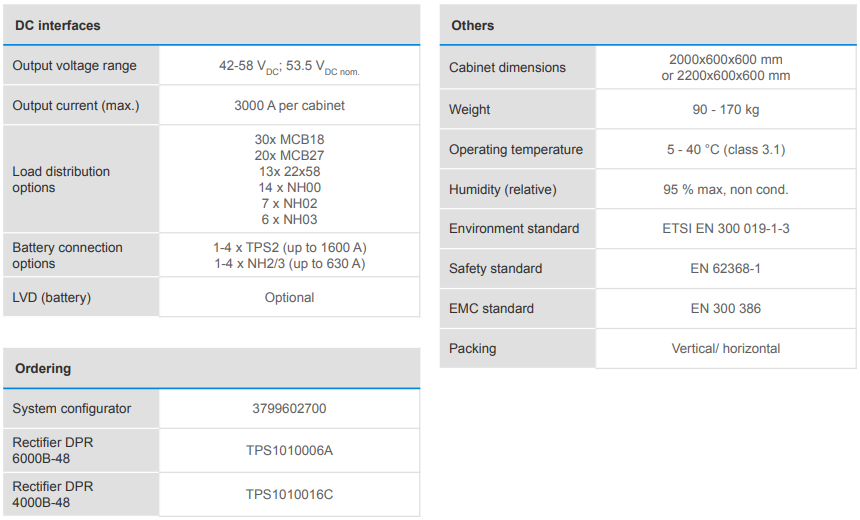

The multi cabinet CabD 3000+ power system is easy to define with a table-based technical configuration file. Breaker ratings, layout amonf other features can be custom configured according to customer requirement.
Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.
