CabD 600

CabD 600

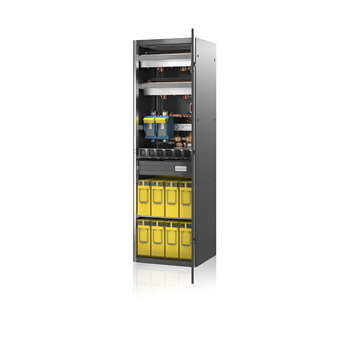

CabD is Delta’s robust indoor cabinet developed for telecom power systems. The number 600 defines the maximum current carrying capacity of cabinet bus bars.

A complete system includes high efficiency rectifiers, AC and DC connections, battery connection and the advanced ORION controller.

Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership

Product Introduction

Main Features
  • Scalable power system up to 600 A
  • Truly modular building blocks
  • High efficiency rectifiers up to 98 %
  • Enhanced monitoring and controlling with ORION controller
Applications
  • Central offices
  • Mobile telephone switching offices
  • Data centers

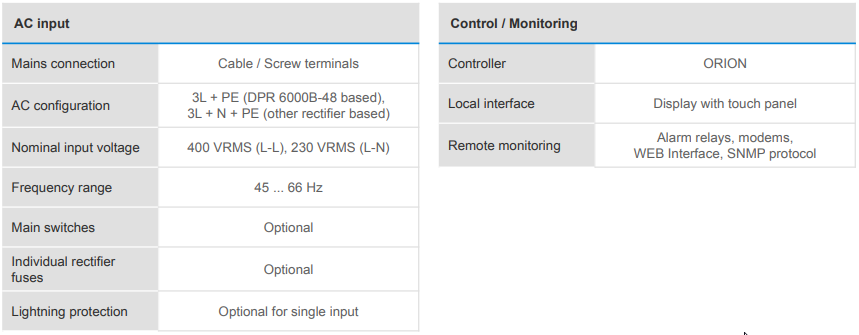

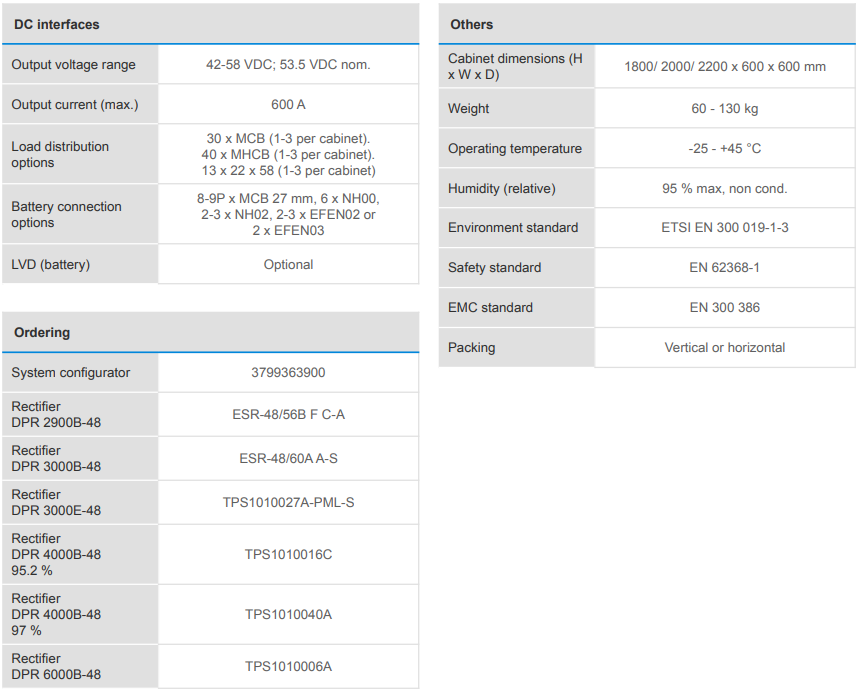

Specifications





Max output current - max installed power 600 A - 28.8 kW



Max BOM 3799363900 Max. Output current 600A
Max. power of system 28.8kW Efficiency 95.2-98%

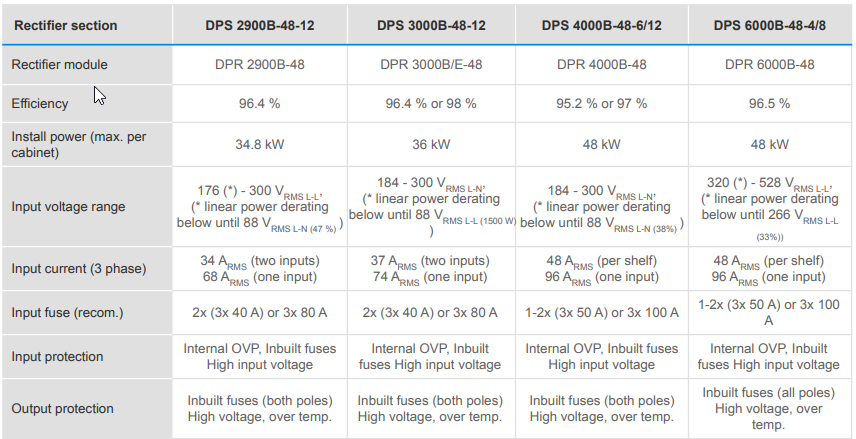

Rectifiers configuration

1x shelf 4x Rectifier 6000W or 2x shelf 4x Rectifier 6000W

1x shelf 6x Rectifier 4000W or 2x shelf 6x Rectifier 4000W

1x shelf 6x Rectifier 3000W

1x shelf 4x Rectifier 2900W

RFF: W600 x D600 x H1800mm

TFF: W600 x D600 x H2000mm

VFF: W600 x D600 x H2200mm

Enhanced monitoring and controlling with Orion Touch controller
Operating temp,
 -25⁰C ...+45⁰C
Cable entry place bottom/top
EMC 300 386 Safety IEC EN 62368
