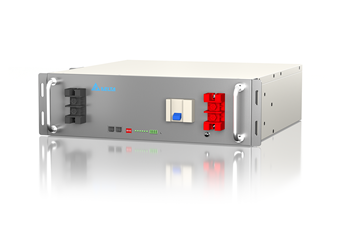

TEB4810

Overview

The pack application is developed for telecom equipment power backup. Under normal conditions, grid AC power supplies to a rectifier module and the telecom loads and also charges a battery pack.

When the AC power failed, the rectifier module stops power supply to loads, the battery ensures the telecom equipment operates normally. When the AC power is switched on again, power from the rectifier module to the telecom equipment is recovered and it charges the battery pack back to backup status.

Main Features

RS485 communication output for monitoring
Built-in automatic protection for over-charge, over-discharge and over-temperature conditions
Built-in BMS with a charging current limiting circuit
Built-in battery optimal control algorithm to manage sleep/wakeup and intermittent charging mode to improve operation efficiency
Built-in cell balancing function
LED indicators state of charge and Alarm/Run status
Compatible with standard telecom rectifiers
Maintenance free

Applications

3G/4G/5G
Fixed Line
Datacom

Specifications

Nominal

Voltage: 48.0 VDC
Capacity: 100 Ah (capacity is measured under 0.2C/25°C @ BOL)

Electrical

Energy

Nominal Energy (25°C, 0.2C): 4800 Wh (capacity is measured under 0.2C/25°C @ BOL)
Volumetric Energy Density: 184 Wh/L
Gravimetric Energy Density: 123 Wh/kg

Standard Discharge (25°C)

Maximum Continuous Current: 100 A
Cut-off Voltage: 37.5 VDC
LVBD Voltage: 41.3 VDC

Standard Charge (25°C)

Maximum Continuous Current: 100 A
Recommended Charging Current and Time: 20 A (0.2C) for 6 hours
Charge Voltage: 52.5–53.5 VDC (Recommend: 53.0 VDC)
Charge Current Limit Function: 10 A
Internal Impendence: < 19 mΩ

Mechanical

Dimensions (W x H x D):
- Without Handle: Approx. 442 x 131 x 450 mm
- With Handle & Terminal: Approx. 482 x 131 x 491 mm
Weight: Approx. 39 ± 2 kg
Total Cells Quantity in Battery Module: 15 pcs of cell in series (Prismatic type cell)
Materials of Battery Case: Carbon steel with corrosion resistant coating
Cell: LFP 100 Ah
Max Quantity of Battery Parallel Connection: 15 for one RS-485 and max 30 pcs in system
Color: White (RAL9003)

Environmental

Calendar Life (25℃): > 10 years
Cycle Life (1C/1C, 25℃)*: 80% DOD 3000 cycles
Operating Temperature**: 0 to +50°C (De-rating from 35°C)
Storage Temperature: 0 to +45°C (Recommended range: 10 to +30°C)

Standards

Safety: UN 38.3, IEC 62619, CE, UL1973

* 1C/1C means charge 1C and discharge 1C.
** Operation temperature means the ambient temperature. Protection may be triggered if the conditions defined in the specification are exceeded.
All specifications are subject to change without prior notice.
Performance may vary depending on, but not limited to cell usage and application. If a cell is used outside specifications, performance will diminish.
