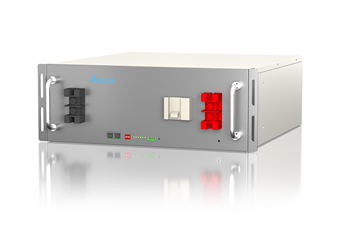

TEB4815

Overview

The pack application is developed for Telecom equipment power backup. Under normal condition, grid AC power supplies to rectifier module and the Telecom loads and also charge battery pack.

When the AC power failed, rectifier module stop power supply to loads, the battery serves for Telecom equipment to ensure the Telecom equipment operation normally; when the AC power is switched on again, power from rectifier module to Telecom equipment recovered and charge the battery pack back to backup status.

Main Features

RS485 communication output for monitoring
Built-in automatic protection for over-charge, over-discharge and over-temperature conditions
Built-in BMS with a charging current limiting circuit
Built-in battery optimal control algorithm to manage sleep/wakeup and intermittent charging mode to improve operation efficiency
Built-in cell balancing function
LED indicators state of charge and Alarm/Run status
Compatible with standard telecom rectifiers
Maintenance free

Applications

3G/4G/5G
Fixed Line
Datacom

Specifications

Nominal

Voltage: 48.0 VDC
Capacity: 150 Ah (capacity is measured under 0.2C/25°C @ BOL)

Electrical
Energy

Nominal Energy (25°C, 0.2C): 7200 Wh (capacity is measured under 0.2C/25°C @ BOL)
Volumetric Energy Density: 206 Wh/L
Gravimetric Energy Density: 118 Wh/kg

Standard Discharge (25°C)

Maximum Continuous Current: 100 A
Cut-off Voltage: 37.5 VDC
LVBD Voltage: 41.3 VDC

Standard Charge (25°C)

Maximum Continuous Current: 100 A
Recommended Charging Current: 50 A
Charge Voltage: Max 53.5 VDC (Recommend: 51.9 VDC)
Charge Current Limit Function: 10 A
Internal Impendence: < 19 mΩ

Mechanical

Dimensions (W x H x D):
- Without Handle: Approx. 442 x 165 x 480 mm
- With Handle & Terminal: Approx. 442 x 165 x 521.5 mm
Weight: Approx. 61 kg
Total Cells Quantity in Battery Module: 15 pcs of cell in series (Prismatic type cell)
Materials of Battery Case: Carbon steel with corrosion resistant coating
Cell: LFP 150 Ah
Max Quantity of Battery Parallel Connection: 15 for one RS-485 and max 30 pcs in system
Color: White (RAL9003)

Environmental

Calendar Life (25℃): > 10 years
Cycle Life (100A/100A, DOD 100%, 25℃)*: SOH 80%, 3500 cycles
Operating Temperature**: 0 to +50°C (De-rating from 35°C)
Storage Temperature: 0 to +45°C (Recommended range: 10 to +30°C)

Standards

Safety: CE, UN38.3, IEC 62619, IEC 60730-1
EMC: EN 61000-6-3:2007+A1:2011+AC:2012, EN/IEC 61000-6-1:2019

* 100A/100A means to charge at 100A and discharge at 100A..
** Operation temperature means the ambient temperature. Protection may be triggered if the conditions defined in the specification are exceeded.
All specifications are subject to change without prior notice.
Performance may vary depending on, but not limited to cell usage and application. If a cell is used outside specifications, performance will diminish.
