DOP-300S HMI

The Standard HMI is designed with embedded cloud services and seamless connection, establishing a comprehensive industrial IoT solution. The fully laminated touchscreen panel and 170° ultra-wide viewing angle enhance the user experience.

Product Introduction

Features & Benefits
  • High-performance CPU: Dual-core ARM Cortex-A7 1.2GHz
  • User-friendly design: IPS technology, fully laminated panel, wide screen, narrow bezel, and 24-bit full-color display delivering fine precision and lifelike visuals.

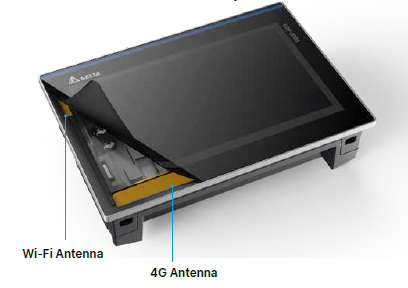

  • Wireless networking design: Built-in antenna, supports wireless modules
  • Industrial internet of things (IIoT): Provides Cloud Platform DIACloud
  • Multiple communication protocols: MQTT, OPC UA, Modbus, EtherNet/IP
  • Safety certification: CE/UL
Flexible & Secure Data Management
  • Batch report supports flexible analytics to boost productivity
  • Complies with FDA 21 CFR Part 11, ensuring data security for enhanced global competitiveness
Applications
  • Data collection and monitoring remotely via cloud: Air Compressors, Water Pumps
  • Medical, Pharmaceutical, Food & Beverages




Specifications
   DOP-3S07S3E2  DOP-3S10S3E2
  Disp;ay Type 7" TFT LCD (24 bits) 10.1" TFT LCD (24 bits)
  Resolution
  (Pixels)		  1,024 x 600
  Back Light LED Back Light (half-life > 20,000 hours at 25°C or 77°F)
  Display Area 154.21 x 85.92 mm  222.72 x 125.28 mm
  Brightness 400 cd/㎡ (Typ.)
  CPU ARM Cortex-A7 Dual Core 1.2GHz
  Flash ROM 512 Mbytes
  RAM 512 Mbytes
  Touch Panel Four-wire resistor
  Viewing Angle 85/85/85/85
  Internet
  Interface		 2 Port, 10/100 Mbps Auto detection (with built-in isolated circuits)
  USB Host 1 Port USB Ver 2.0 Type A  5 V / 1000 mA
1 Port USB Ver 2.0 Type C  5 V / 500 mA
  USB Slave N/A
  SD Micro SD
  Serial
  Communication
  Port		 COM1: RS-232 (supports flow control)
COM2: RS-232 / RS-485
COM3: RS-422 / RS-485
  Certification CE / UL
  Operation
  Temperature		  0 ~ 50°C
  Storage
  Temperature		  -20 ~ 60°C
  Mounting
  Dimensions
  (W x H, mm) 		 186.8 x 126.8  255 x 170

Optional Accessories & Top-up Card

Optional Accessories
Product Working Temp. Protocol Frequency Range Encryption Related Products Antenna Frequency Model Certificates
Wireless Module 0˚C ~ 50˚C 802.11 b / g / n compatible 2.4 GHz 802.11i (WPA, WPA2) DOP-3S07S3E2, DOP-3S10S3E2 N / A CN, EU, INDIA DX-MWB-01N CE, SRRC, WPC
Wireless Module 0˚C ~ 50˚C 802.11 b / g / n compatible 2.4 GHz 802.11i (WPA, WPA2) DOP-100 Series
(DOP-107SV, DOP-12 / 15” NOT SUPPORTED)		 Yes CN, EU, INDIA DX-MWB-01 CE, SRRC, WPC

Note: To ensure usage rights, please activate and use it within two years after shipment from Delta, and it will be valid within one year after activation.
Delta reserves the right to adjust.

Top-up Card
Product Capacity Use Time Usage Related Products Model
Remote Access 36 GB 1 year Used for VNC, HMI or remote upload / download from PLC DOP-3S07S3E2
DOP-3S10S3E2		 DX-TRA-0036
Cloud Application 500 TAG 1 year Used for VNC, HMI or remote upload / download from PLC DOP-3S07S3E2
DOP-3S10S3E2		 DX-TRA-0036
Software Tools
Product Descriptions Operating System
DIAScreen Used for Editor Software for DOP-Handheld, DOP-100 & DOP-300 Series Windows® 8 / 10 / 11 (32-bit / 64-bit)
DIAWebDesigner Provides professional visible page design for DIACloud, and creates reports using programmed elements with vivid drawings and charts Windows® 8 / 10 / 11 (32-bit / 64-bit)
DIACom Creates secure tunnel from PC to DIACloud platform Windows® 8 / 10 / 11 (32-bit / 64-bit)
Web Services
Product Descriptions Operating System
hms.diacloudsolutions.com DIACloud Web site for HMI to monitor HMI/Dashboard and manage the user. Browser
eDIACloud Mobile app to bind HMI with DIACloud and to monitor HMI or Dashboard. App Store / Google Play
