RT Gen3 Series 1/2/3 kVA

Safeguard your edge with a smart and economical power solution

Delta’s Amplon RT series UPS is a robust online double-conversion UPS offering strong power protection with a convertible rack and tower configuration in 2U size. With its clean output power in pure sine wave, RT Gen3 can handle a wide range of utility problems, from blackout to harmonic distortion. Rest assured that your device is always fortified and safeguarded with RT Gen3!

RT Gen3 1-3 kVA UPS - LCD Panel


Downloads:
English French German Italian Polish Spanish
Request a Quote Subscribe Newsletter

Product Introduction

Features & Benefits

High Availability

  • True online double-conversion topology and zero transfer time to battery mode
  • Operates at up to 50 ℃ adapting to various environments
  • Excellent overload capacity allows the overload condition to continue within the timeframe


Green with Low TCO

  • Output power factor 0.9 provides more capacity to load
  • Up to 90% online mode efficiency and 95% ECO mode efficiency contributes to significant energy cost savings
  • Capable of working in harsh electrical environments with a wide input voltage range to minimize battery usage


Easy Management

  • Convertible rack and tower configuration with rotatable LCD screen
  • LCD display and intuitive interface offer effortless monitoring and configuration
  • Excellent local communications through rotatable LCD display
  • Intelligent management software connectivity via RS-232, mini slot or USB port for remote monitoring and setting
Applications

UPS N series applications

Specifications
  1. Model
  2. RT-1K / RT-2K / RT-3K
  4. Topology
  5. Online double-conversion
  7. Power Rating
  8. RT-1K: 1 kVA / 0.9 kW
    RT-2K: 2 kVA / 1.8 kW
    RT-3K: 3 kVA / 2.7 kW
  10. Input
  11. Nominal Voltage: 208(1)/ 220/ 230/ 240 Vac, 1P2W+PE
  12. Voltage Range: 180-280 Vac (100% load); 120-300 Vac (50-100% load)
  13. Frequency: 40-70 Hz
  14. Power Factor: > 0.99 (100% load)
  15. Connection (Std)
    RT-1/2K: IEC C14
    RT-3K: IEC C20
  17. Output
  18. Nominal Voltage: 208(1)/ 220/ 230/ 240 Vac, 1P2W+PE
  19. Voltage Regulation: ±1%
  20. Frequency: 50/60 ± 3 Hz
  21. Total Harmonic Distortion (THDv): < 3% (linear load)
  22. Power Factor: 0.9
  23. Connection
    RT-1K: IEC C13 x4
    RT-2/3K: IEC C13 x4 + IEC C19 x1
  24. Overload Capability
    < 105-110%: 10 mins; 110-130%: 30 secs; 130-150%: 3 secs
  25. Current Crest Ratio: 3:1
  27. Efficiency
  28. Online Mode:
    RT-1/2K: 88%
    RT-3K: 90%
  29. ECO Mode:
    RT-1K: 93%
    RT-2K: 94%
    RT-3K: 95%
  31. Battery - Standard Runtime Model
  32. Battery Type: VRLA, inbuilt battery
  33. Nominal Voltage
    RT-1K: 24 Vdc
    RT-2K: 48 Vdc
    RT-3K: 72 Vdc
  34. Quantity
    RT-1K: 2 pcs
    RT-2K: 4 pcs
    RT-3K: 6 pcs
  35. Charging Time: 4 hours to 90%
  36. Charge Current: 1 A
  38. Battery - Extended Runtime Model
  39. Battery Type: VRLA, External battery cabinet (Optional)
  40. Nominal Voltage
    RT-1K: 38 Vdc
    RT-2/3K: 72 Vdc
  41. Parallel Configuration: Up to 4 EBCs
  42. Charge Current: 1/ 2/ 4/ 6 A (configurable)
  44. Communication Interface
  45. Display: LCD display with LED indicators
  46. Port: USB, RS-232, Mini slot (option for mini SNMP, mini MODBUS and mini relay I/O card)
  48. Physical
  49. Dimensions (W x D x H)
    RT-1K: 438 x 310 x 86 mm
    RT-2K: 438 x 410 x 86 mm
    RT-3K: 438 x 630 x 86 mm (Std) / 438 x 460 x 86 mm (Ext)
  50. Net Weight
    RT-1K: 10.6 kg (Std) / 5.7 kg (Ext)
    RT-2K: 17.9 kg (Std) / 8.4 kg (Ext)
    RT-3K: 26.6 kg (Std) / 8.9 kg (Ext)
  51. Packing Dimensions (W x D x H)
    RT-1K: 600 x 500 x 240 mm
    RT-2K: 565 x 700 x 240 mm
    RT-3K: 600 x 760 x 240 mm (Std) / 545 x 760 x 240 mm (Ext)
  52. Packing Weight
    RT-1K: 13.9 kg (Std) / 9.4 kg (Ext)
    RT-2K: 22 kg (Std) / 12.8 kg (Ext)
    RT-3K: 31.5 kg (Std) / 13.3 kg (Ext)
  54. Environment
  55. Operating Temperature: 0 to 50 °C (40 to 50 °C de-rating to 70% load)
  56. Humidity: 10-90% (non-condensing)
  57. Audible Noise: ≤ 50 dBA
  58. Altitude: 0-3,000 m (derating 1%/100 m from 2,000-3,000 m)
  59. Storage Temperature: -20 to 50 °C
  60. Ingress Protection: IP20
  62. Comformance
  63. Safety: CE, UKCA, KC
  64. EMC: IEC 62040-2
  65. Sustainability: RoHS, REACH
  67. (1) De-rating to 70% load
    Ext: Extended runtime model
    Std: Standard runtime model
  68. All specifications are subject to change without prior notice.

Runtime Table

Standard Runtime Model
1 kVA
Load 90 W 180 W 270 W 360 W 450 W 540 W 630 W 720 W 810 W 900 W
Backup Time 57.5 26.9 16.8 11.9 9.1 7.3 6.1 3.5 3.5 3.1

2 kVA
Load 180 W 360 W 540 W 720 W 900 W 1080 W 1260 W 1440 W 1620 W 1800 W
Backup Time 61.1 28.3 17.7 12.5 9.5 7.7 6.5 3.5 3.5 3.3

3 kVA
Load 270 W 540 W 810 W 1080 W 1350 W 1620 W 1890 W 2160 W 2430 W 2700 W
Backup Time 67.1 29.4 18.1 12.5 10.3 8.2 6.9 3.5 3.5 3.5
Unit: min
(1) Runtime table is estimated based on operation at 25°C with batteries fully charged.


Extended Runtime Model
1 kVA
Load 90 W 180 W 270 W 360 W 450 W 540 W 630 W 720 W 810 W 900 W
UPS+1EBC 87.4 38.2 22.3 15.4 12.0 10.0 8.8 7.7 6.6 5.3
UPS+2EBC 201.9 96.7 59.2 40.6 29.9 23.2 18.8 15.8 13.7 12.2
UPS+3EBC 318.3 158.5 100.2 70.5 52.9 41.4 33.5 27.8 23.6 20.4
UPS+4EBC 435.3 221.2 142.5 102.0 77.6 61.5 50.2 41.8 35.5 30.7

2 kVA
Load 180 W 360 W 540 W 720 W 900 W 1080 W 1260 W 1440 W 1620 W 1800 W
UPS+1EBC 90.8 39.8 23.3 16.0 12.4 10.4 9.1 8.0 6.9 5.7
UPS+2EBC 209.3 100.6 61.7 42.3 31.2 24.3 19.7 16.5 14.3 12.7
UPS+3EBC 329.7 164.6 104.3 73.5 55.2 43.2 35.0 29.0 24.6 21.3
UPS+4EBC 450.7 229.6 148.1 106.2 80.9 64.1 52.3 43.7 37.1 32.0

3 kVA
Load 270 W 540 W 810 W 1080 W 1350 W 1620 W 1890 W 2160 W 2430 W 2700 W
UPS+1EBC 58.8 24.9 15.1 11.2 9.2 7.6 5.8 3.3 2.5 2.0
UPS+2EBC 142.8 65.9 39.2 26.6 19.7 15.6 13.1 11.5 10.3 9.4
UPS+3EBC 229.5 111.3 68.6 47.3 34.9 27.1 22.0 18.4 15.8 14.0
UPS+4EBC 317.1 158.0 99.7 70.0 52.4 40.9 33.1 27.5 23.3 20.2
Unit: min
(1) Up to 4 EBCs can be paralleled.
(2) Runtime table is estimated based on operation at 25°C with batteries fully charged.


Download Center

Search and download offer documentation, support information, certificates, CAD and software.

Contact us

Do you have an inquiry but do not know where to turn?

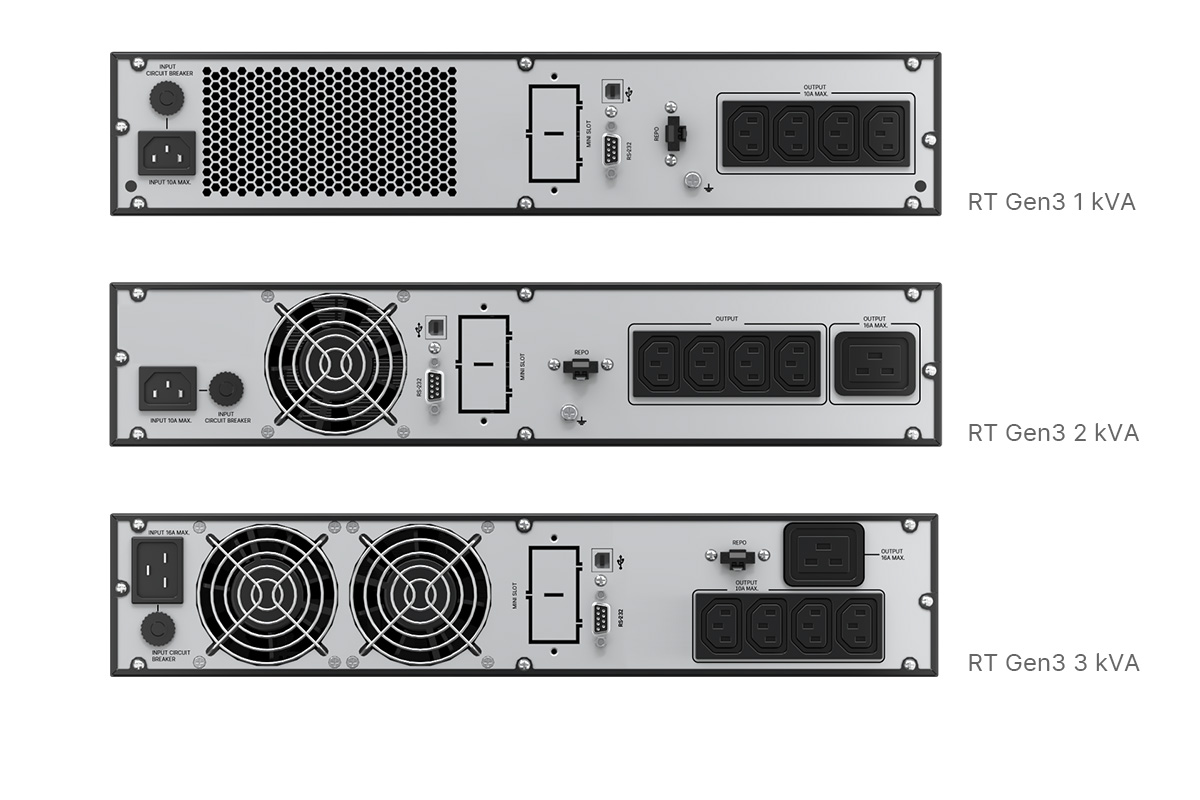

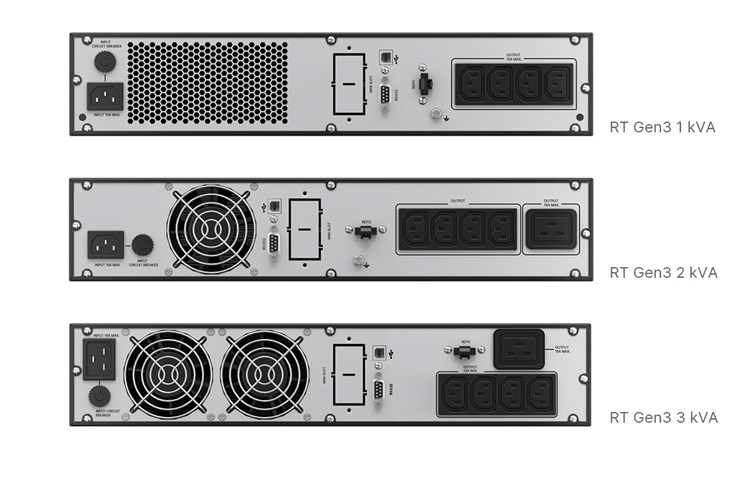

Standard Runtime Model Rear Panels

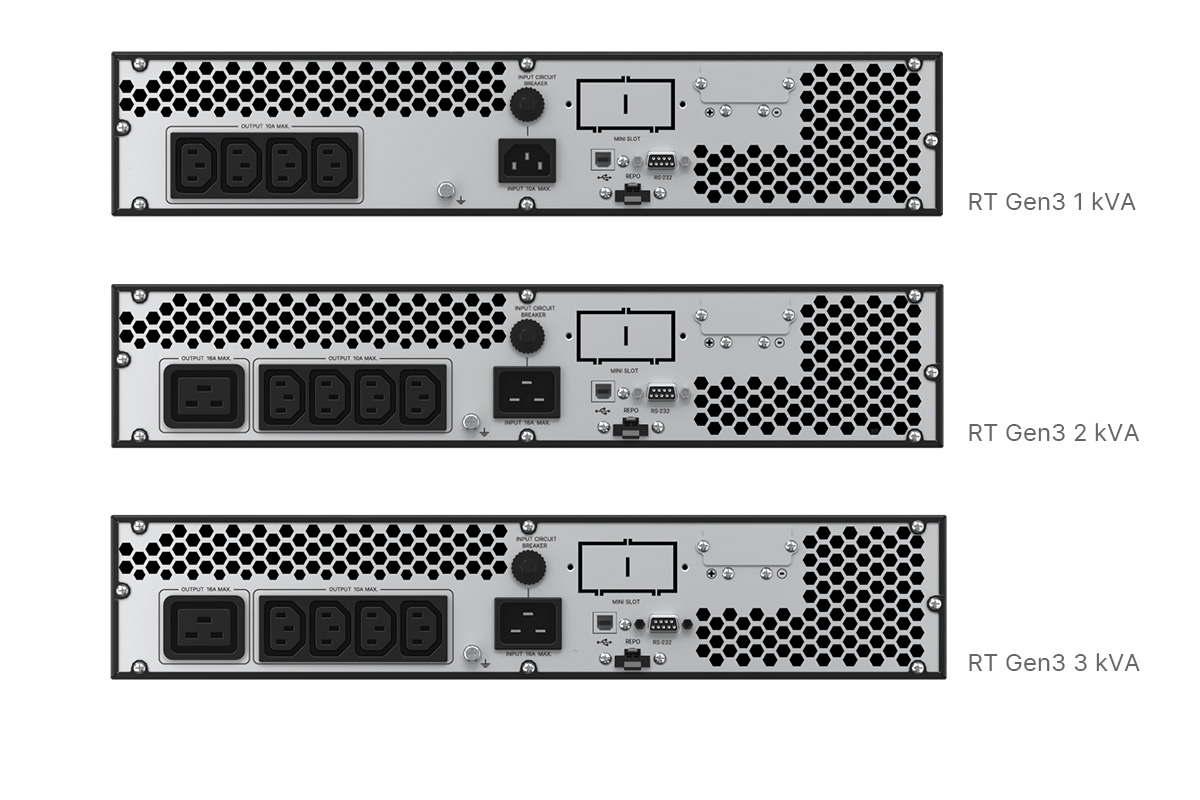

Extended Runtime Model Rear Panels
