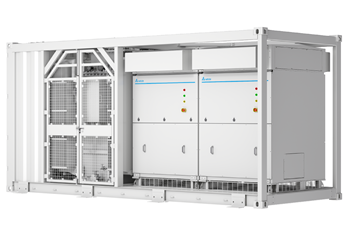

PCST5500 MV Power Station (22 kV)

5.5 MW PCS Turnkey Station with MV Transformer

The PCST5500 MV Power Station (22 kV) is designed for utility-scale energy storage applications. It bridges the gap between efficiency and flexibility by combining the advantages of both central inverter and string architectures. The PCST5500 MV Power Station (22 kV) incorporates the modularity of a string architecture, allowing independent management of two out of four battery systems for optimized storage capacity.

Delivering a nominal power output of up to 5.5 MW, the PCST5500 MV Power Station (22 kV) features exceptional compatibility with mainstream battery technologies. To further streamline on-site project delivery, it comes pre-equipped with an integrated 22 kV medium voltage transformer and switchgear, which significantly boosts installation and maintenance efficiency.
Contact Us

Product Introduction

Product Introduction
Contact us

Product Introduction

• Pre-equipped with a 22 kV medium voltage transformer and switchgear

• Combine the advantages of both central inverter and string architectures

• Allowing independent management of two out of four battery systems

Features & Benefits

Utility Grid

Solar-Plus-Storage

Factory

Feature Highlights

Plug & Play for Diverse Applications

Two 2.782 MW power conversion systems
Pre-equipped with a 22 kV medium voltage transformer and switchgear

Rapid On-Site Deployment

Easy to transport and commission via skid-based design
Built for outdoor installation, eliminating the need for housing
Simplifies maintenance and troubleshooting for increased efficiency

Flexibility and Compatibility

Customizable for diverse applications
Manage two or four battery systems independently
Compatible with mainstream battery technologies and manufacturers

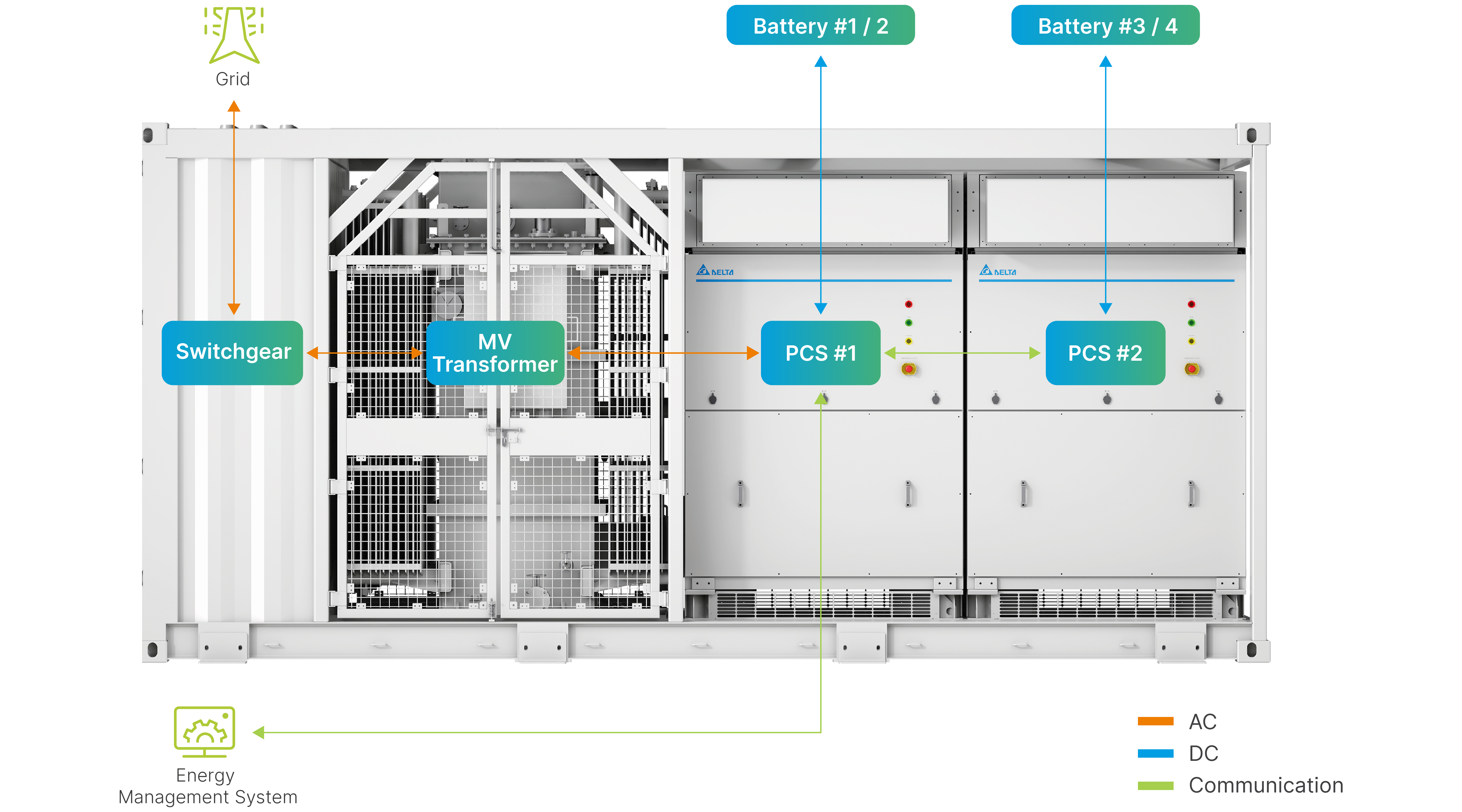

System Architecture

Download

Downloads

For comprehensive details on the PCST5500 MV Power Station (22 kV), we invite you to download our informative documentation. Access everything you need to know in one convenient place.

Datasheet

Download

Expert Support

Explore Our Energy Storage System Solutions

To optimize your energy strategy, consider implementing the PCST5500 MV Power Station (22 kV), a scalable power conversion system (PCS) designed to meet both current and future needs. This system is ideal for integrating renewable energy sources like solar power, enhancing power quality, and ensuring reliable power backup, thereby boosting your infrastructure's overall effectiveness and efficiency.
