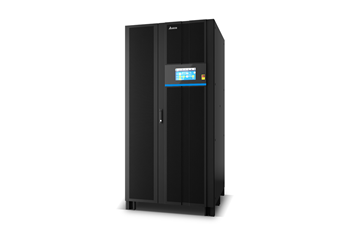

DPH Gen3 Series 125- 625/1250/2000 kVA

Optimized Cost and Space

• Optimized ROI: Leverage industry leading power density (125kW in 3U) to reduce footprint and clear space for more revenue generating hardware
• Unrivaled Efficiency: Achieve up to 97.5% AC-AC efficiency and 99% in Clean Mode to slash energy costs
• Intelligent Peak Shaving: Lower utility cost by strategically shifting consumption to off-peak hours
• Sustainable Testing: Utilize internal Energy Recycle Mode for full-load testing without the waste or cost of external load banks

Engineered for Mission-Critical Uptime

• Inbubulit Synchronized Multiple Bus: Dual source management ensures seamless power transition
• Generator-Friendly: Hybrid mode prevents generator shutdowns and aviods the need for expensive infrastructure upgrades
• Superior Overload Resilience: Outperforms the competition with a 110% continuous overload capacity

Designed for Modern Management

• Rapid Serviceability: Front-access, hot-swappable design for power modules, STS module and communication interface dramatically reduce MTTR (Mean Time to Repair)
• Smart Monitoring: Manage power and Delta Lithium-ion batteries via a 10-inch graphical touchscreen

1. Model
2. DPH-G3-625K, DPH-G3-1250K, DPH-G3-2000K⁽¹⁾

3. ---

4. Power
5. ⦁ DPH-G3-625K
   Power Rating: 125-625 kVA/kW
   System Capacity: 625 kW
6. ⦁ DPH-G3-1250K
   Power Rating: 125-1250 kVA/kW
   System Capacity: 1250 kW
7. ⦁ DPH-G3-2000K
   Power Rating: 125-2000 kVA/kW
   System Capacity: 2000 kW
8. Parallel Configuration: Up to 8 units

9. ---

10. Input
11. Nominal Voltage: 220/380, 230/400, 240/415 Vac; 3P4W+PE
12. Voltage Range: 323-477 Vac (100% load); 249-323 Vac (with derating to 70% load)
13. Frequency: 40-70 Hz
14. Total Harmonic Distortion (THDi)⁽²⁾: < 1.5% (linear load); < 2% (non-linear load)
15. Power Factor:  > 0.99 (100% load)
16. Short Circuit Withstand Current: 100 kA

17. ---

18. Output
19. Voltage: 220/380, 230/400, 240/415 Vac; 3P4W+PE
20. Voltage Regulation: ±1% (static); ±3% (dynamic)
21. Frequency: 50/60 ± 0.05 Hz
22. Total Harmonic Distortion (THDv): < 1% (linear load); < 3% (non-linear load)
23. Power Factor: 1
24. Permitted Load Power Factor: Optional, 0.5 leading to 0.5 lagging without derating
25. Overload Capability: < 110%: continuously⁽³⁾; ≤ 125%: 10 min; ≤ 150%: 1 min
26. Current Crest Ratio: 3:1

27. ---

28. Efficiency
29. Online Mode: Up to 97.5%
30. ECO Mode: Up to 99%
31. Clean Mode (VI Mode): Up to 99%

32. ---

33. Battery
34. Battery Type: VRLA/Lithium-ion
35. Nominal Voltage: 480 Vdc
36. Quantity: 40 pcs, 32^(4)-48 pcs configurable,12V VRLA battery)
37. Maximum Charge Current/per Module: 40 A

38. ---

39. Communication Interface
40. Display: 10-inch color LCD touchscreen
41. Port: RS-232, RS-485, USB, RJ45, REPO
42. Protocols: SNMP, Modbus, HTTP(S)

43. ---

44. Physical
45. Dimensions (W x D x H)
    ⦁ DPH-G3-625K: 800 x 1000 x 2000 mm
    ⦁ DPH-G3-1250K: 1000 x 1000 x 2060 mm
46. Net Weight - UPS System (without power modules)
    ⦁ DPH-G3-625K: 530 kg
    ⦁ DPH-G3-1250K: 898 kg
47. Net Weight - Power Module: 60 kg

48. ---

49. Environment
50. Operating Temperature: 0 to 40℃
51. Humidity: 0-95% (non-condensing)
52. Altitude: 0-1000 m

53. ---

54. Conformance
55. Safety: CE, RCM
56. EMC: IEC 62040-2
57. Performance: IEC 62040-3
58. Seismic Rating: GR63-Zone4
59. Sustainability: RoHS, REACH

60. ---

61. (1) Upcoming product
    (2) When input THDv < 1%
    (3) Operation temperature < 30°C
    (4) 32-38 pcs requires load derating

    All specifications are subject to change without prior notice.
