SLIM 100

Discover the Power of Compact Charging with the SLIM100 DC fast Charger

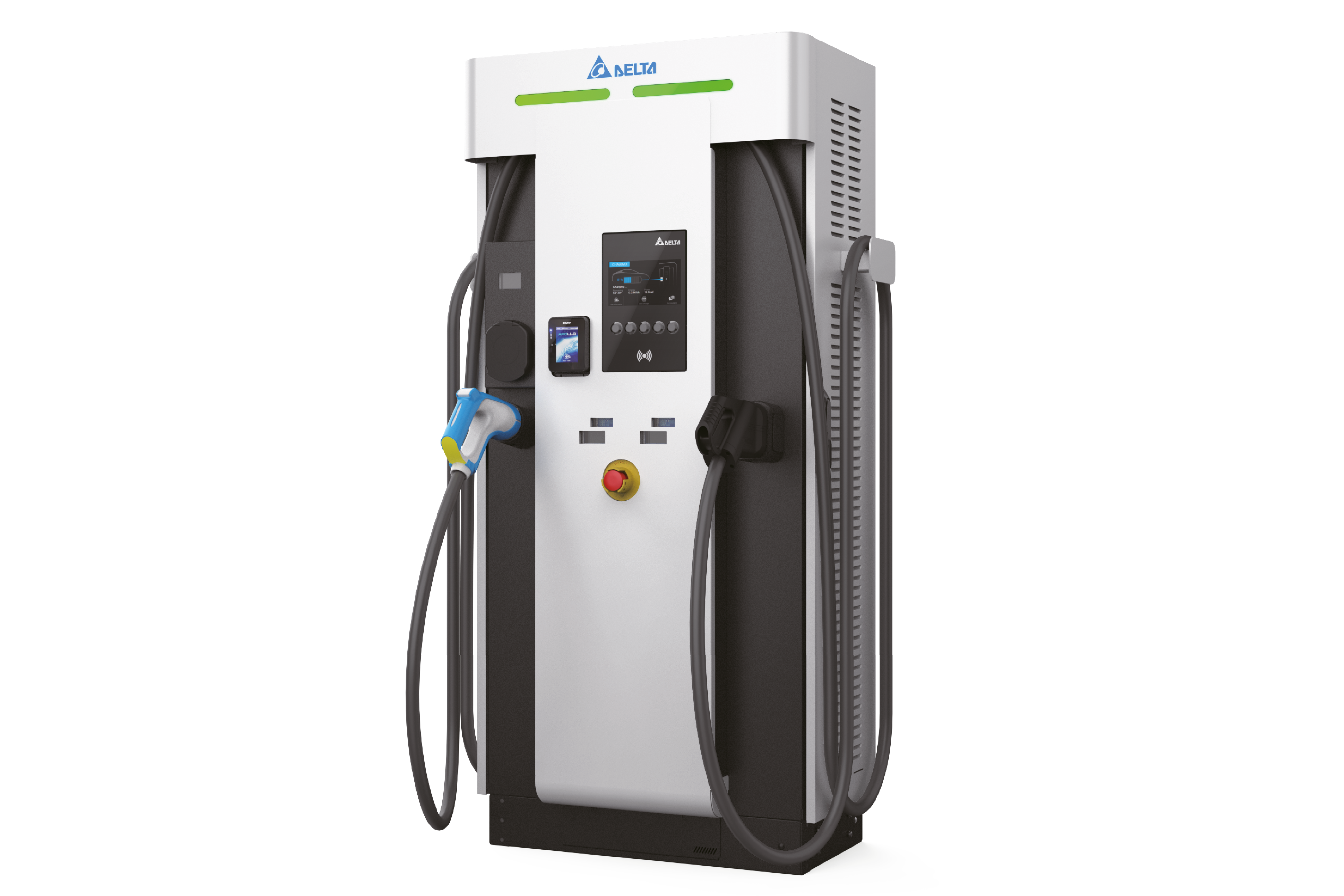

Delta SLIM100, an innovative 100 kW DC Compact Charger designed for commercial, destination, and public electric vehicle (EV) charging stations. Offering a blend of power efficiency, compact design, and multi-vehicle charging capabilities, it's the perfect choice for space-critical locations.
Contact Us

Product Introduction



The SLIM 100 offers a maximum power output of 100 kW and includes rectifiers with 97% power efficiency. It provides simultaneous charging of up to three vehicles and offers the convenience of both DC and AC charging. With its ability to deliver 100 kW of power in a single cabinet, the Delta Slim 100 is well-suited for commercial applications, parking lots, and urban traffic hubs. It features a flexible cable radius and multi-directional charging capability for greater installation versatility and user convenience. Additional key features include a comprehensive user interface with RFID, payment terminal, and energy meter. The Slim 100 also includes a prominent charging status light, clearly visible from a distance, helping drivers quickly identify available charging points.

Features & Benefits

Multi-directional Cable Use

Easy access and efficient space usage are at the core of the design. The flexible, multi-directional setup allows convenient charging from either side of the vehicle, while the new cable management system ensures smooth cable handling across various parking positions. With a generous cable radius, it enables effortless operation and reduces strain on the cables.

Power and Versatility Combined

Delivering 2 x 50 kW DC charging simultaneously, the system can charge up to three vehicles at once. With support for up to 920 VDC, it is ready for both current and next-generation EVs. Dynamic load distribution optimizes charging times, while 97% rectifier-level efficiency ensures maximum energy performance.

User-Friendly and Accessible To Everyone

User-friendly operation and seamless access are built into every detail. RFID authentication and optional credit card support ensure a simple and secure charging experience. Accessibility according to DIN 18040 standards provides barrier-free use, while clear status indicators guide EV drivers to available charging points.

Maximum Durability and Reliability

The Slim 100, with its IP55 and IK10 ratings, ensures exceptional durability in all environments, offering a reliable and long-lasting charging solution.
Applications

Commercial Areas

Parking

Service Stations

Logistics Fleets

Traffic Hubs

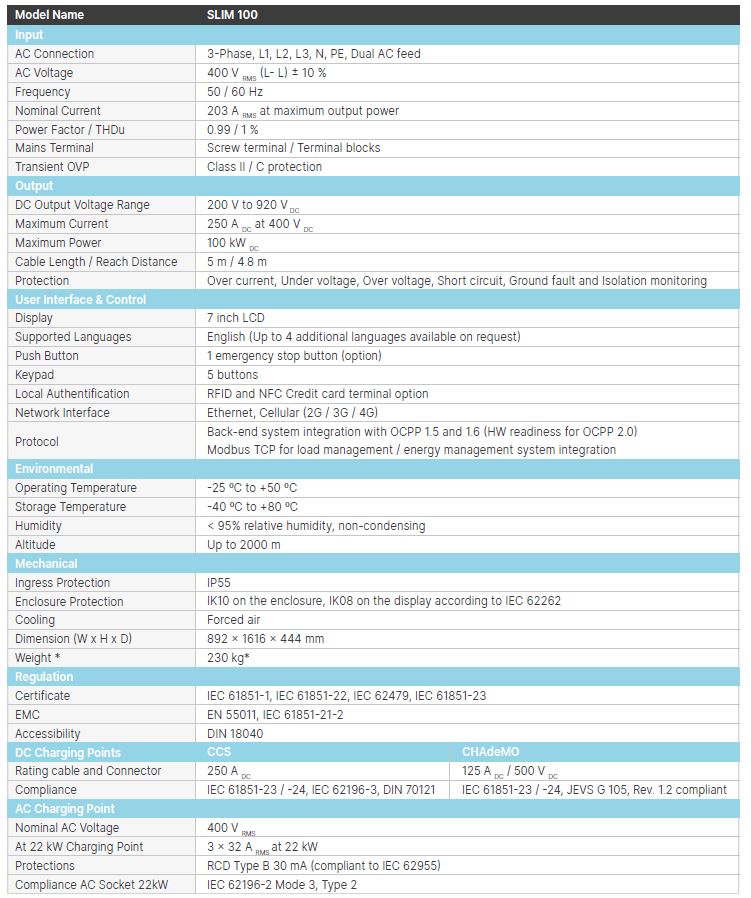

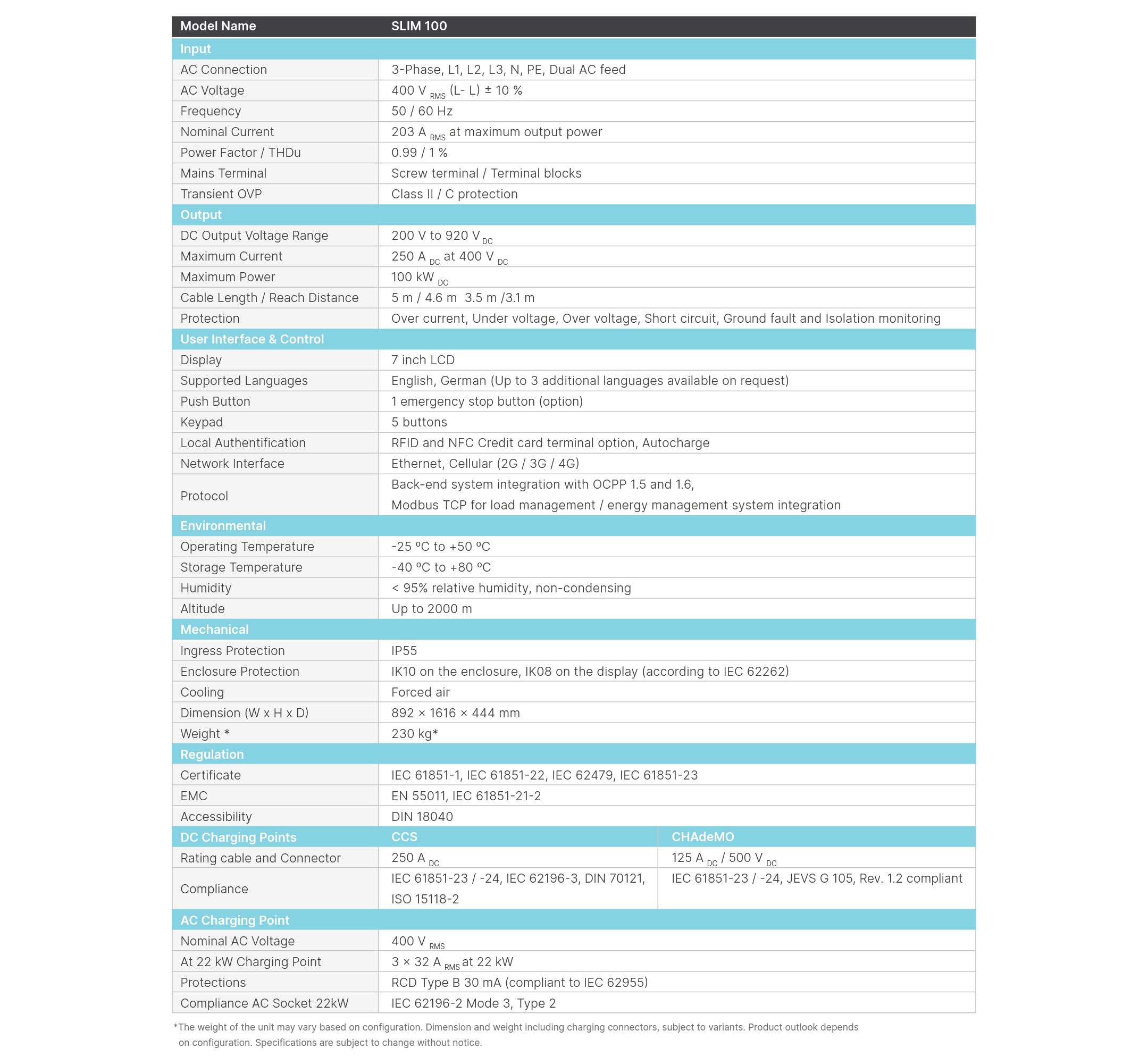

Specifications

Download Sections

For comprehensive details on the Delta DC Charger, we invite you to download our informative documentation. Access everything you need to know in one convenient place.



Datasheet

Download
